How Much Does a Transfer Switch Cost in Toronto in 2026?

Last updated:ByStandby Power Desk

A whole-home automatic transfer switch costs $1,500 to $3,000 supplied and installed in Ontario, and a manual switch $800 to $1,500, according to Kolji Bros. Electrical. The ESA permit adds $50 to $350. Prices exclude 13 percent HST. A licensed contractor must pull the permit, and backfeeding a wall outlet is illegal.

What does a transfer switch cost by type?

This range rests on 3 independent sources, counted from the 11 priced lines below rather than from a list at the bottom of the page. Every figure was re-read in the page it is credited to. Where sources disagree, both numbers are shown and the disagreement is named in the row's condition; we do not average them and we do not widen a range to cover one.

Each bar runs from the low to the high of one published range, on a scale shared by every transfer switch installation line quoted in the same unit. Bars that do not line up are sources that do not agree. 8 of 11 priced lines are drawn here; the numbers are the same ones in the table below.

per project (CAD)

  • Interlock kit, supplied and installed

    $400–$800

  • Manual transfer switch, supplied and installed

    $800–$1,500

  • Automatic transfer switch, supplied and installed (whole-home)

    $1,500–$3,000

  • GenerLink 30-amp system, starting price

    $1,650

per unit (CAD)

  • Transfer switch unit only, manual or automatic (equipment, unbundled)

    $200–$2,000

  • Generator power inlet box, equipment only

    $20–$100

  • Heavy-duty power cord, generator to inlet box

    $30–$350

  • GenerLink 40-amp system

    $2,449.99

Not drawn: 3 lines, each the only figure on this page quoted in per project (CAD, labour only), per permit (CAD) and per hour (CAD). With nothing else in the same unit there is no shared scale to draw them on. Every one of them is priced in full in the table below.

  • Interlock kit, supplied and installed

    For portable generators only, and manual. KoljiBros describes it as the budget-friendly option; you switch at the main panel yourself.

    Typical range
    $400–$800
    Unit
    per project (CAD)
    Source
    Kolji Bros. Electrical (Ontario, 2026)

  • Manual transfer switch, supplied and installed

    Covers selected circuits only, not the whole panel, and you flip the switch yourself.

    Typical range
    $800–$1,500
    Unit
    per project (CAD)
    Source
    Kolji Bros. Electrical (Ontario, 2026)

  • Automatic transfer switch, supplied and installed (whole-home)

    Required for a standby generator, not optional. KoljiBros' separate installation-breakdown table prices an automatic switch lower at $800-$2,000, so the two figures on their own page do not agree.

    Typical range
    $1,500–$3,000
    Unit
    per project (CAD)
    Source
    Kolji Bros. Electrical (Ontario, 2026)

  • Transfer switch unit only, manual or automatic (equipment, unbundled)

    Equipment only, spanning every type from a basic manual switch to a service-entrance unit, which is why the band is so wide. Draper is in Braeside, eastern Ontario, not the GTA, and their guide is written to the US National Electrical Code rather than the Ontario Electrical Safety Code.

    Typical range
    $200–$2,000
    Unit
    per unit (CAD)
    Source
    Draper Electric (Ontario)

  • Installation labour, transfer switch (2-4 hours)

    Labour only. Draper says most installations take 2 to 4 hours and quotes an electrician at $50 to $130 per hour plus a $75 service call - rates well below what GTA sources on this page charge, so treat it as an eastern-Ontario floor.

    Typical range
    $200–$500
    Unit
    per project (CAD, labour only)
    Source
    Draper Electric (Ontario)

  • Generator power inlet box, equipment only

    Equipment only. Draper advises buying the switch, cord and inlet box together to avoid compatibility problems, so this is rarely bought alone.

    Typical range
    $20–$100
    Unit
    per unit (CAD)
    Source
    Draper Electric (Ontario)

  • Heavy-duty power cord, generator to inlet box

    Equipment only, and the spread is driven by amperage: Draper pairs a 30-amp switch to 7,500-8,000 watts and a 200-amp switch to 45,000-48,000 watts.

    Typical range
    $30–$350
    Unit
    per unit (CAD)
    Source
    Draper Electric (Ontario)

  • Electrical permit, transfer switch installation

    Draper's guide follows the US National Electrical Code and does not name the Electrical Safety Authority. In Ontario an ESA electrical permit is the one that applies, and Ontario Generator Systems puts that at $100-$300.

    Typical range
    $50–$350
    Unit
    per permit (CAD)
    Source
    Draper Electric (Ontario)

  • GenerLink 30-amp system, starting price

    "Starts at" - a floor, not an installed total. Draper does not say what installation adds, and prices generator-and-switch combos separately from $3,999 up to $7,999.99.

    Typical range
    $1,650–$1,650
    Unit
    per project (CAD)
    Source
    Draper Electric (Ontario)

  • GenerLink 40-amp system

    Draper's listed price for the unit, exact to the cent. Equipment only; installation is not included and is not priced alongside it.

    Typical range
    $2,449.99–$2,449.99
    Unit
    per unit (CAD)
    Source
    Draper Electric (Ontario)

  • Electrician hourly rate, GTA (applicable to switch/interlock labour)

    For standard residential work in the GTA. Amps Logics charges more for specialist and emergency work, and applies a $150-$300 minimum service call on top.

    Typical range
    $95–$140
    Unit
    per hour (CAD)
    Source
    Amps Logics Electric (Toronto/GTA, 2026)

What is actually inside the number?

Two quotes for the same job are hard to compare when one folds a line into its total and the other leaves it out. This is the shape of the work, stage by stage, with every figure taken from the same priced lines in the table above.

The three ways to connect a generator, cheapest first

The switch is where quotes on this page diverge most, and the reason is that these three are not the same product. What separates them is how much of the work happens without you there.

You throw the breakers yourself

  • Interlock kit

    $400–$800

    A sliding plate that makes it physically impossible to have the utility breaker and the generator breaker on at once. The cheapest legal connection, and fully manual.

You flip one switch by hand

  • Manual transfer switch

    $800–$1,500

    A separate small panel wired to selected circuits. It covers the circuits it was wired for and nothing else.

Nobody has to be home

  • Automatic transfer switch, whole-home

    $1,500–$3,000

    Detects the outage, starts the generator and moves the load across with no one present. Required for a standby generator.

Bought separately, these still have to match

  • Transfer switch unit only

    $200–$2,000

    Equipment unbundled from labour, which is why an unbundled quote can look cheaper than a supplied-and-installed one.

  • Power inlet box

    $20–$100

    The exterior socket the portable generator's cord plugs into. Sold by amperage.

  • Cord, generator to inlet

    $30–$350

    Buying the switch, the inlet and the cord separately is where compatibility problems start.

  • Installation labour

    $200–$500

    Two to four hours of it, at a GTA electrician's rate.

  • Electrical permit

    $50–$350

    Whether this is in your number depends on who pulls it.

What drives the price?

Size, access and how much of the existing electrical and gas work has to be redone move a transfer switch installation quote more than brand choice does. Each factor below is one a source on this page prices or names.

  • Switch type - an interlock kit ($400-$800) is cheapest, a manual transfer switch ($800-$1,500) is mid-range, and an automatic transfer switch ($1,500-$3,000) is most expensive
  • Amperage and service size - 30-amp, 40-amp and 200A whole-house switches carry different equipment costs (Draper's GenerLink line runs from $1,650 starting for 30-amp to $2,449.99 for 40-amp)
  • Panel type and age - older or non-standard panels can add labour time and sometimes require adapter hardware
  • Distance between the panel and the outdoor inlet or generator location, which affects cord and conduit run length ($30-$350 for the power cord alone)
  • Whether a permit and ESA inspection is required and who pulls it - permit costs run $50-$350
  • Manual (portable generator, homeowner switches over) vs automatic (standby generator, switches itself within seconds) - automatic requires more wiring, sensing and control hardware
  • Labour market rates - GTA electrician rates range $50-$140/hr standard, more for emergency or specialist work

What's specific to Ontario and Toronto?

Ontario adds 13 percent HST, requires an ESA permit for the electrical work and a TSSA permit for anything gas-fired, and licenses who may do each. These are the local rules that change the total.

  • The ESA (Electrical Safety Authority) prohibits directly plugging a portable generator into a wall outlet or panel without an approved transfer mechanism (interlock, manual switch, or automatic switch); doing so is illegal and creates a backfeed, fire and electrocution risk.
  • A licensed electrical contractor must pull the ESA permit for transfer switch work; permit costs run $50-$350 per Draper Electric.
  • HST at 13% applies to transfer switch equipment and installation labour in Ontario.
  • GenerLink units sold in Canada are CSA-certified and accepted by most Canadian utilities, but confirm with your local utility (e.g. Toronto Hydro, Alectra) before purchase since utility-program pricing can differ from retail electrician pricing.

How can I pay less?

The biggest savings come from bundling visits, avoiding after-hours rates, and checking which fees a quote already contains. Each tip below is tied to a figure in the table above.

  • If you only run a portable generator during outages, an interlock kit ($400-$800 installed) is far cheaper than a manual transfer switch ($800-$1,500) or automatic switch ($1,500-$3,000) and is ESA-legal when installed correctly.
  • Bundle the transfer switch install with your main generator installation quote rather than as a separate job, since a single site visit avoids paying two separate labour or service-call minimums.
  • Ask whether the permit fee ($50-$350) is included in your quote before comparing bids, since it's easy to compare against a bid that quietly excludes it.
  • Ask whether a GenerLink quote is the unit or the installed job. Draper publishes $1,650 as a starting price for the 30-amp system with no installation attached, so a quote near that number is probably not the finished cost.
  • If you buy your own inlet box or cord, confirm your electrician accepts customer-supplied parts first, and buy the switch, cord and inlet box together - Draper warns that mixing them is where compatibility problems start.

How did we research these numbers?

Every price on this page was found in the page it is credited to, and recorded with the sentence that carries it. Where a figure could not be found in its source it was removed rather than adjusted. Here is what that left, and what it could not settle.

  • Kolji Bros. Electrical's Ontario 2026 pricing guide gives the clearest tiered breakdown: interlock kit $400-$800, manual transfer switch $800-$1,500, automatic transfer switch $1,500-$3,000, all supplied and installed - this is the anchor data for this topic.
  • Draper Electric (Ontario) publishes a wider, more general '$200-$2,000' range for a transfer switch unit that doesn't split manual from automatic, plus separate labour ($200-$500), inlet box ($20-$100) and permit ($50-$350) line items, which is useful for seeing what a bundled Kolji Bros. quote is actually paying for.
  • GenerLink pricing is published by amp rating, not as one price: Draper Electric lists a 30-amp system as "starting at $1,650" and a 40-amp option at $2,449.99. Both are equipment figures with no installation attached, and "starting at" means Draper declined to name a ceiling. A second Ontario installed price previously shown here has been removed, because the page it came from now answers a bot challenge instead of serving content and cannot be re-read.
  • Draper Electric puts a generator power inlet box at $20 to $100, equipment only. A specific retail price was previously pinned to that claim, from a supplier whose product page renders no price at all without JavaScript. It could not be verified against the page, so the inlet-box figure now rests on Draper's published range alone.
  • Draper Electric also lists bundled generator-and-switch combo packages at $3,999 to $7,999.99, but that range includes the generator itself rather than just the switch, so it is excluded from this topic's price rows to avoid double-counting against the installation-cost topic.
  • Labour is billed at general electrician rates rather than a generator-specific rate in every Ontario source found: $50-$130/hr per Draper Electric versus $95-$140/hr standard (up to $180-$300+/hr emergency) per Amps Logics Electric's GTA rate guide.

Sources

Who can do the work?

Home Generator Index tracks 8 transfer switch installers across the Greater Toronto Area, rated 4.63★ on average. The three below rank highest on our review-weighted score, based on Home Generator Index's analysis of 8 GTA businesses, August 2026.

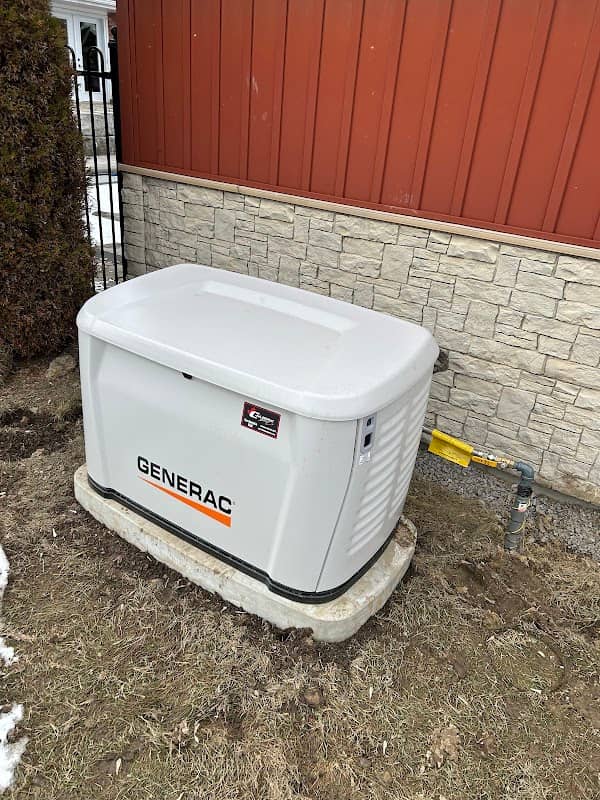

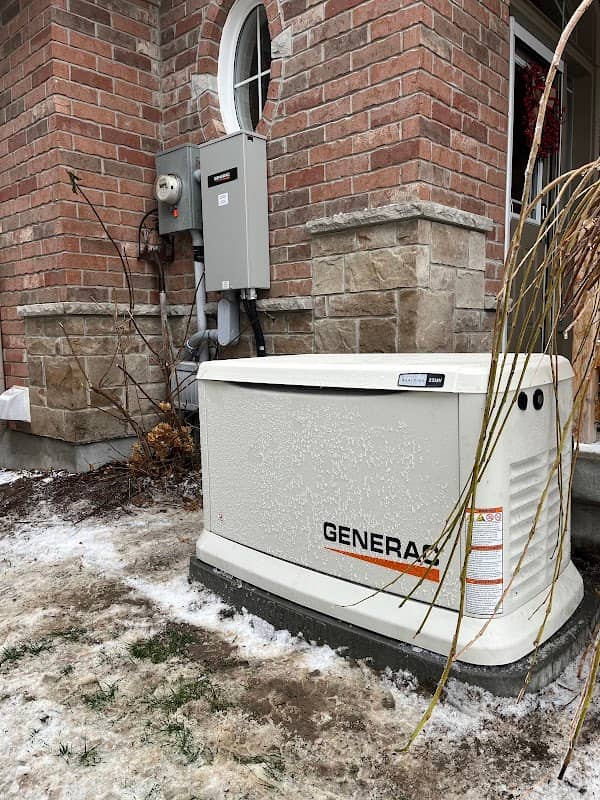

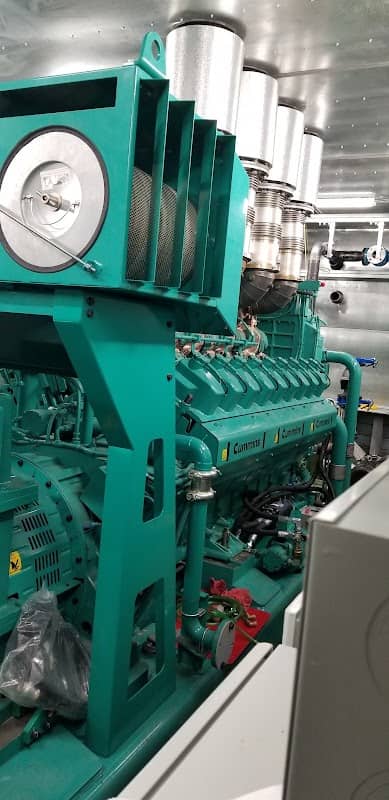

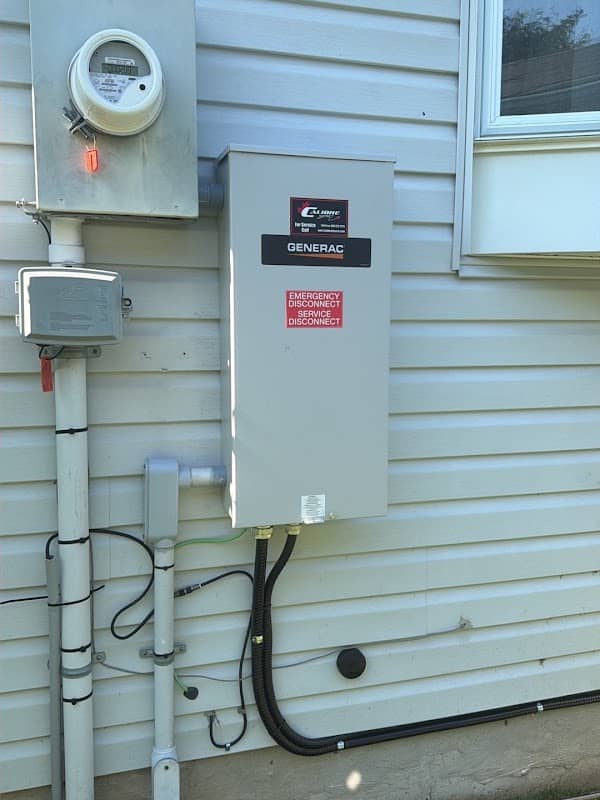

4 photographs published by 2 of the transfer switch installation companies above, on their own Google Business profiles. We show a picture only after looking at it, and only where the subject is the installed work. Storefronts, staff portraits, branded vans and manufacturer product shots are held back, because none of them says anything about whether a company can wire a transfer switch.
See all 8 transfer switch installers on Home Generator Index

Work out your own numbers

The table above is what other people paid. These calculators put your own house into the same published figures, and none of them asks for an email address.

What do the terms on a generator quote mean?

Two transfer switch installation quotes are hard to compare when each uses the same word for a different scope. These 4 terms appear on the line items above, and each one changes what a number covers.

Interlock kit
A sliding plate on the main panel that makes it physically impossible to have the utility breaker and the generator breaker on at once. The cheapest legal way to connect a portable generator, and manual: you throw the breakers yourself.
Manual transfer switch
A separate small panel wired to selected circuits. You flip it by hand when the power goes out. It covers the circuits it was wired for and nothing else.
Automatic transfer switch (ATS)
Detects the outage, starts the generator and moves the load across without anyone present. Required for a standby generator. This is the line item where quotes diverge most on this page.
Power inlet box
The exterior socket a portable generator's cord plugs into, wired back to the transfer switch. Sold by amperage, and it has to match both the switch and the cord: buying the three separately is where compatibility problems start.

What else changes the total?

a Transfer Switch is rarely quoted on its own. A cost that looks like an overrun on a transfer switch installation quote is usually a priced line item on one of these three guides.

Frequently asked questions

How much does a transfer switch cost installed in Ontario?

Kolji Bros. Electrical prices a manual transfer switch at $800 to $1,500 installed and an automatic transfer switch at $1,500 to $3,000 installed.

What's the cheapest way to legally connect a portable generator?

An interlock kit, at $400 to $800 supplied and installed per Kolji Bros. Electrical, is ESA-compliant and much cheaper than a manual or automatic transfer switch.

How much does a GenerLink cost in Ontario?

Draper Electric lists a 30-amp GenerLink system as starting at $1,650 and a 40-amp option at $2,449.99. Both are equipment prices with no installation included, and "starting at" is Draper's own wording, so treat $1,650 as a floor rather than a quote.

How much does a generator inlet box cost?

Draper Electric puts a generator power inlet box at $20 to $100 for the equipment alone. Draper advises buying the transfer switch, power cord and inlet box together rather than separately, to avoid compatibility problems between them.

How much is labour to install a transfer switch?

Draper Electric prices installation labour at $200 to $500 for a straightforward 2-4 hour job, on top of electrician hourly rates of $50 to $130 per hour.

Do I need a permit to install a transfer switch in Ontario?

Yes. An ESA electrical permit is required and must be pulled by a licensed electrical contractor; permit costs run $50 to $350.

What is the difference in cost between manual and automatic transfer switches?

Manual switches run $800 to $1,500 installed versus $1,500 to $3,000 for automatic switches, roughly double, reflecting the extra sensing and control hardware that lets an automatic switch transfer power without homeowner action.

Questions to ask your contractor

  1. Are you quoting an automatic switch or a manual one, and why that one for my house?
  2. Which circuits land on the switch, and is a critical load subpanel included? Compare switch types and costs
  3. Is the Electrical Safety Authority notification and inspection inside the quoted price?
  4. Does my existing panel have room for this, or does it need work first?
  5. How long will the power be off on install day?
